The E-Mover in the skidless paint shop
The technology of the E-Mover is based on a unique modular system and is patented for special applications in the body paint shop.
Instead of rigid conveyor technology, the driverless transport system enables skidless, free or track-bound navigation within a compact space, creating maximum flexibility in modern production facilities.
The elimination of skids and their energy-intensive heating and cooling during the painting process significantly reduces energy consumption and increases the efficiency of the system.
Thanks to its versatile application possibilities and scalable payloads, the advantages of the driverless transport system as E-Mover Paint and E-Mover Store are not limited to the automotive industry. It also ensures high efficiency in the metal processing industry.
With our overall concept of the skidless paint shop, we offer an economical and future-proof answer to our customers’ key requirements in terms of flexibility, scalability and sustainability.
1.500 kg
payload
Omnidirectional
driving
Wireless charging
up to 93% efficiency
Skidlose
Lackiererei
Why modern paint shops benefit from an autonomous guided vehicle
Challenges
in paint shops
- Wide range of variants and batch size 1 require flexible material flows.
- Rigid conveyor systems make conversions, capacity adjustments and relocations more difficult.
- Safe mixed operation of people and transport technology is increasingly becoming the standard.
The solution

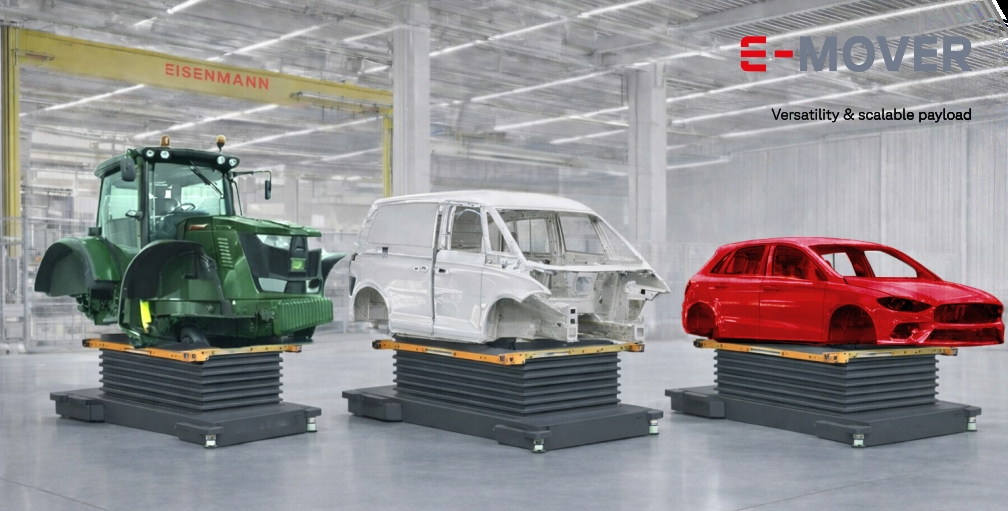

The E-Mover technology transports loads of 1.5 - 3.5 tons and passes through all process areas of the paint shop as an E-Mover Paint. The E-Mover Store offers maximally scalable area storage and maximum flexibility in the use of existing areas.

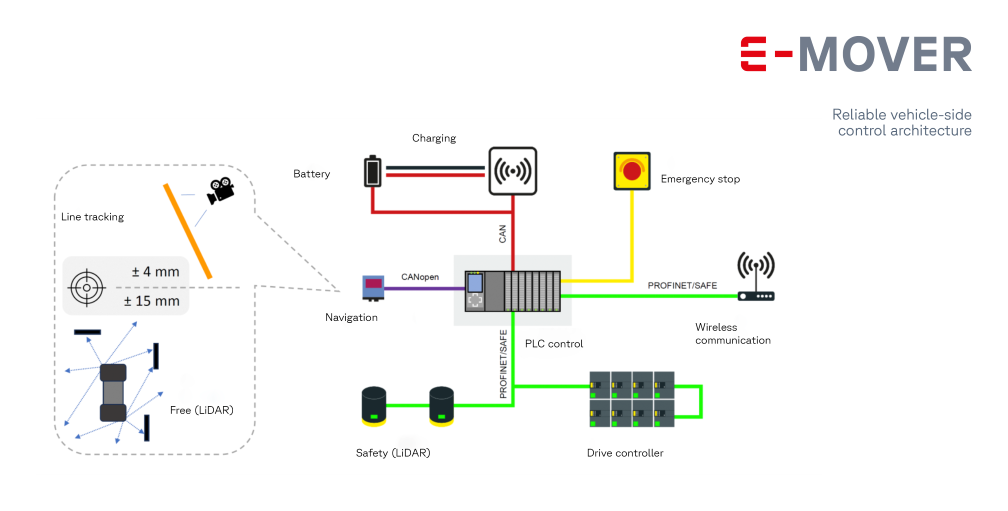

Technical data at a glance
Payload: up to 1,500 kg
Speed: up to 1.5 m/s
Driving: omnidirectional
Navigation: optical tracking or free navigation
Safety: 360° LiDAR protective field
Communication: W-LAN / secure protocol

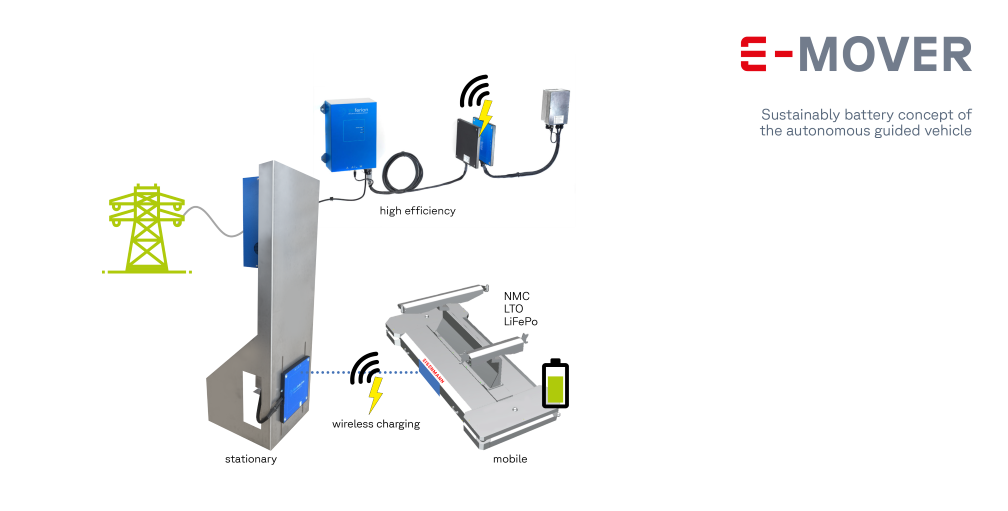

Charging system: wireless, up to 93% efficiency
Battery types: NMC / LTO / LiFePo
Focus on cost-effectiveness and flexibility
Investment & planning benefits
- Patented solution for special applications in paint shops
- Standardized industrial components for long-term spare parts availability
- E-MOVER Store provides an area storage solution without expensive high-bay storage technology
Operation & sustainability
- Up to 93% efficient wireless charging
- Battery concept for shift-long operation without recharging
- Safe mixed operation through automated speed adjustment
Create sustainable processes with flexibility and scalability in your paint shop!
Let us help! We look forward to hearing from you.
